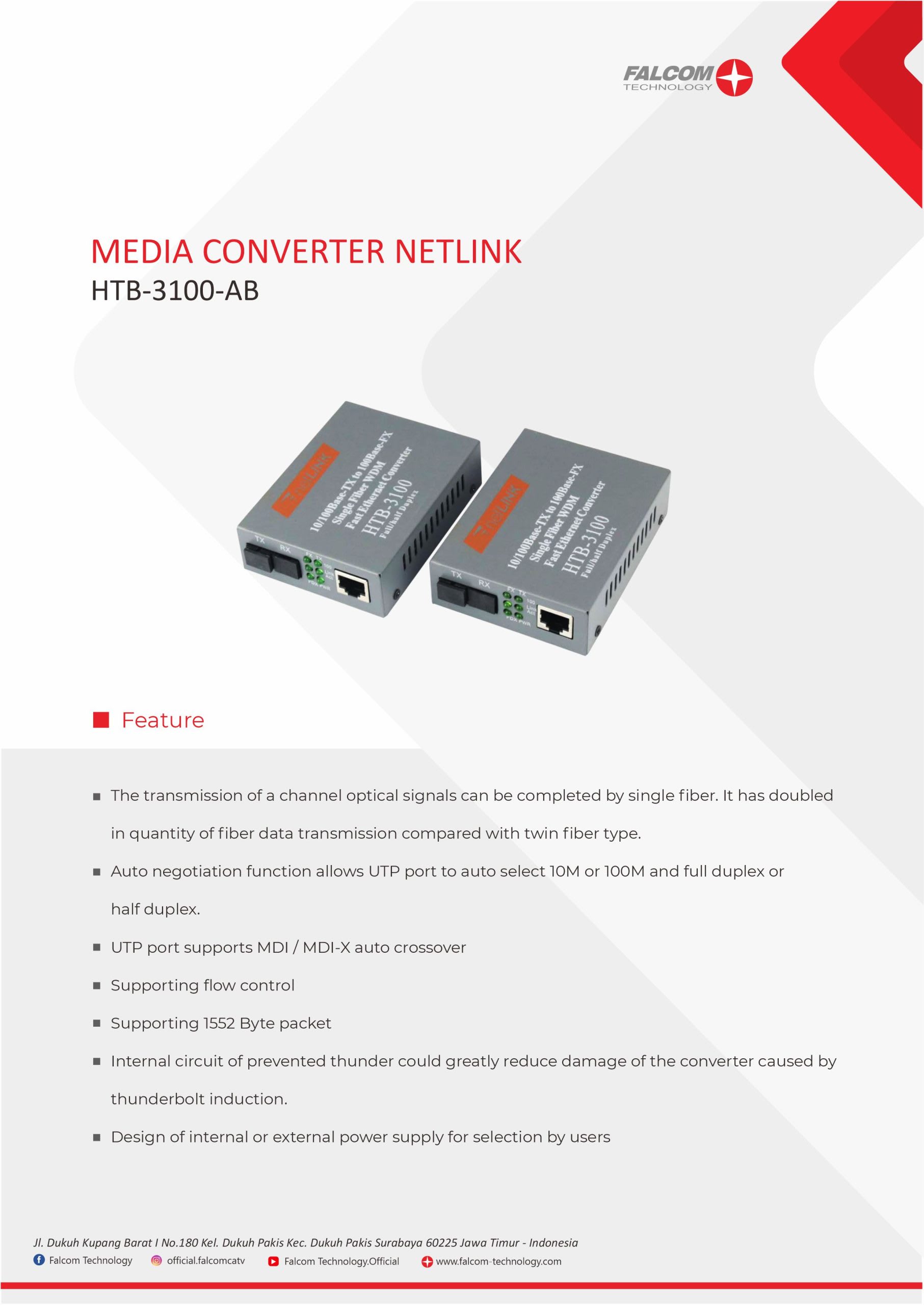

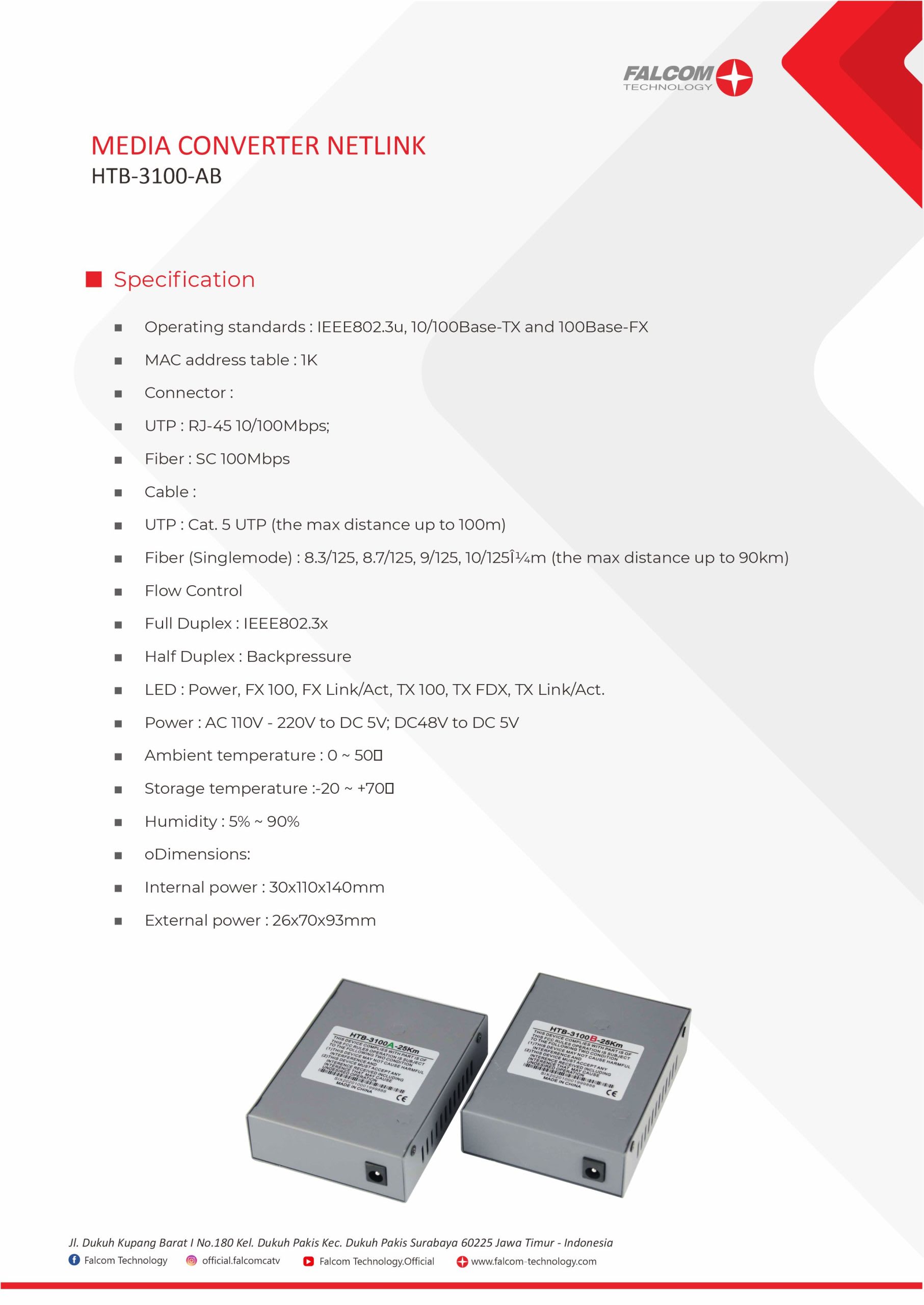

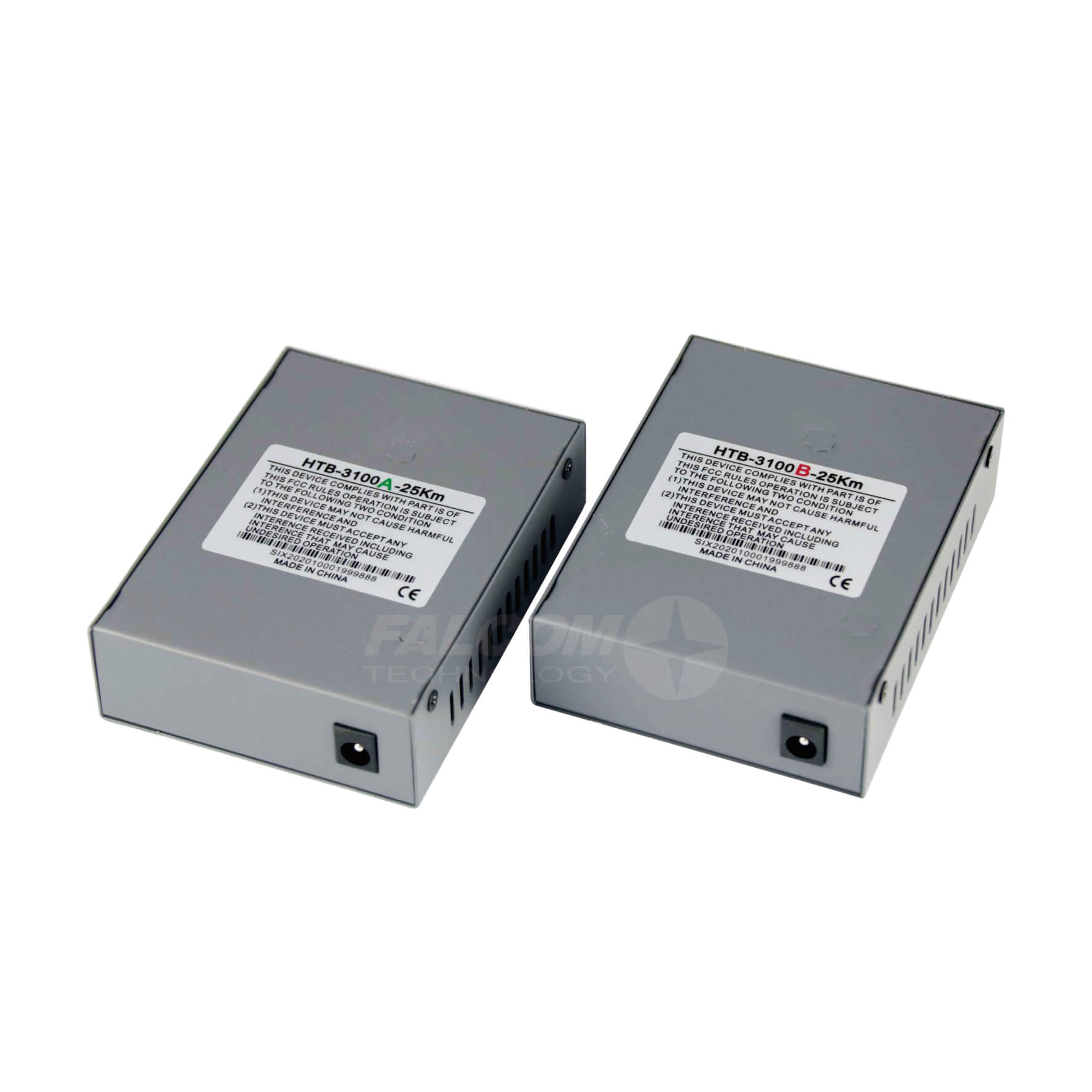

Media Converter Netlink HTB-3100-AB

Description

Share:

Feature: Single mode and one optical fiber It can save half of the fiber,the data on a single fiber and the 10/100 m rate of receiving and sending,where the optical fiber resource is very applicable

  • High Quality
  • An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
  • Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
  • Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
  • Has 10M/100M adaptive capacity ;
  • Ethernet interface can adaptively direct line / crossover cable connection ;
  • Support full / half duplex mode ;
  • Support IEEE802.3X duplex flow control and half-duplex backpressure flow control
  • Supports broadcast storm prevention function ;
  • 1916 Byte support large data frame ( optional ) ;
  • Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
  • UTP up to 100 meters ; longest 100 km single-mode fiber ;
  • There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working status of the transceiver and determine the cause of the fault ;
  • There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
  • Working temperature : 0 ~ 50 degree;
  • Storage temperature : – 40 ~ 70 degree ;
  • Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.
  • outer Dimensions: 95mm × 71mm × 25mm
